Pin Gauges
Metal Pin Gauges 1.0-20.00mm Step 0.01mm (1Pcs)
$4.90
Free shipping over $1,000.00
30-day returns
Certified accuracy
Description
METAL PIN GAUGE
- Material: Metal Tool Steel
- Proportion: 7.85
- Hardness: HRC58~62
- Thermal Expansion: 10.4
Specification
| Size | Length | Class 0 | Class 1 | ||
|---|---|---|---|---|---|
| Size | Length | Tolerance | Roundness | Tolerance | Roundness |
| 0.1mm~0.19mm | 40mm | - | - | ±1μm | 0.8μm |
| 0.2mm~0.99mm | 40mm | ±0.5μm | ±0.3μm | ±1μm | 0.8μm |
| 1.0mm~10.0mm | 50mm | ±0.5μm | ±0.3μm | ±1μm | 0.8μm |
| 10.01mm~20.0mm | 50mm | - | - | ±1.5μm | 1.3μm |
Measurement Techniques

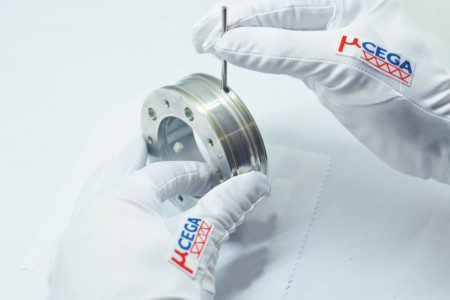

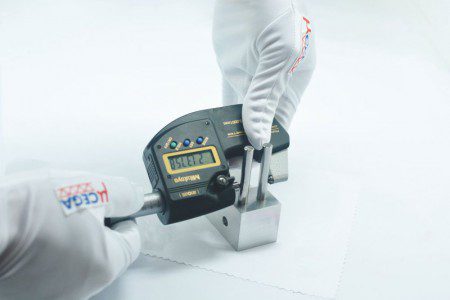

Groove Width Measurement
Measure groove width with precision pin gauges

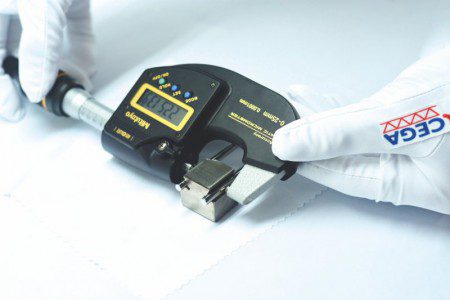

Gear Pitch Measurement
Measure gear pitch distance accurately

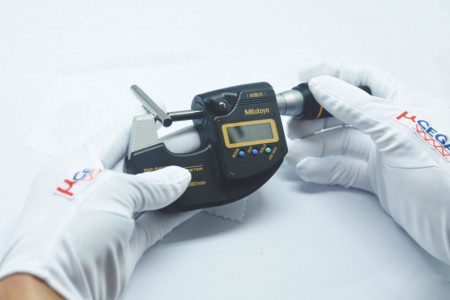

Hole Distance Measurement
Measure hole-to-hole distance precisely

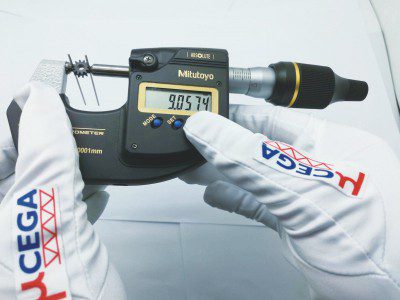

Tool Calibration
Calibrate measuring tools with pin gauges
Groove Measurement
Measure groove dimensions accurately

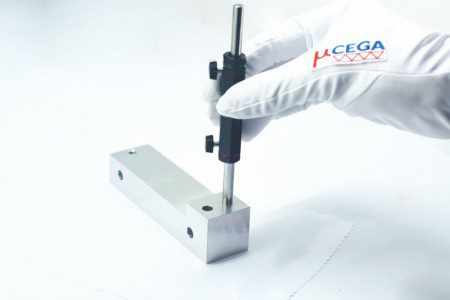

Go/No-Go Gauge
Go/no-go gauge inspection for quality control
Packaging

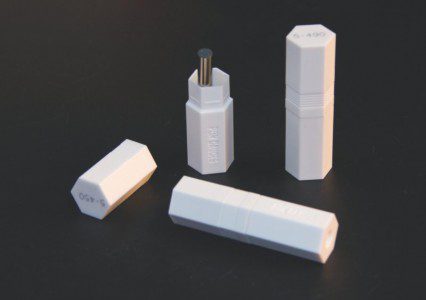

Single Needle Gauge Box
Individual protective case for each pin gauge

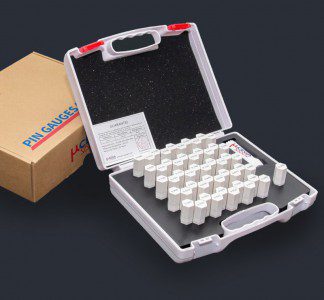

Set Needle Gauge Box
51 pieces per set in protective carrying case

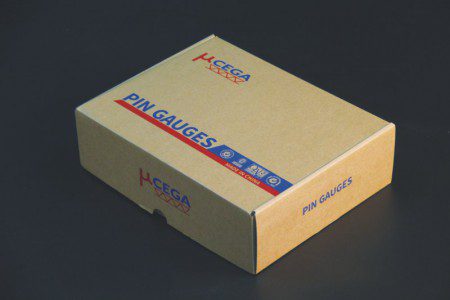

Overpacking
Branded retail box with UCEGA logo

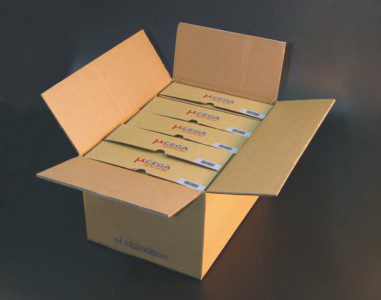

Carton Packaging
5 sets per carton for bulk orders
